Post subject: How to model a Fused circuit breaker in SKM  Posted: Tue Aug 13, 2024 8:13 am |
|
Joined: Wed Jun 12, 2024 5:19 am
Posts: 27
|
|
Hello,
How do I model a Fused circuit breaker in SKM? The breaker is 800A Cutler-Hammer DSL-206.
| Attachments: |
DSL206.png [ 93.04 KiB | Viewed 2474 times ]
|
|
|
| Top |
|
 |
|
bbaumer
|
Post subject: Re: How to model a Fused circuit breaker in SKM Posted: Tue Aug 13, 2024 3:19 pm |
|
| Sparks Level |
 |
Joined: Fri Jul 08, 2016 10:01 am
Posts: 383
Location: Indiana
|

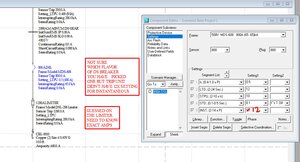

Looks like you have an Eaton Magnum DS with current limiters. Just put the breaker and current limiting fuses in series with each other. Here is an example but I don't know exactly which breaker you have or what the amp rating is of the limiter so I just somewhat randomly picked them. This is in SKM. Attachment:
MDSL.jpg [ 398.84 KiB | Viewed 2471 times ]

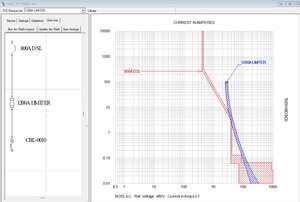

Attachment:
DLS TCC.jpg [ 508.12 KiB | Viewed 2471 times ]
_________________
SKM jockey for hire
PE in 17 states
|
|
| Top |
|
|
|
jsoar
|
Post subject: Re: How to model a Fused circuit breaker in SKM Posted: Tue Aug 13, 2024 6:47 pm |
|
Joined: Wed Jun 12, 2024 5:19 am
Posts: 27
|
|
Man, I think I have modeled it incorrectly. I thought it was fuse then breaker.
| Attachments: |

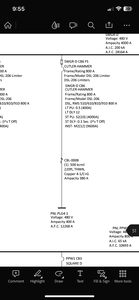

File comment: Another example for cb 6
IMG_0955.png [ 186.16 KiB | Viewed 2466 times ]
|

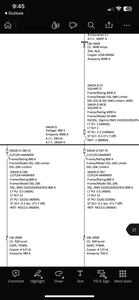

File comment: It's cb 6, 7, & the main circuit breaker.
IMG_0954.png [ 236.44 KiB | Viewed 2466 times ]
|
|
|
| Top |
|
|
|
bbaumer
|
Post subject: Re: How to model a Fused circuit breaker in SKM Posted: Tue Aug 13, 2024 11:07 pm |
|
| Sparks Level |
|
Joined: Fri Jul 08, 2016 10:01 am
Posts: 383
Location: Indiana
|
|
Not sure why it would make any difference. I have a customer with this type of gear and have the shop drawings with factory one-lines I can check but not until Thursday.
You might be right. I can't remember if it's breaker then fuse or fuse then breaker. Again though, makes no difference for anything downstream.
_________________
SKM jockey for hire
PE in 17 states
|
|
| Top |
|
|
|
bbaumer
|
Post subject: Re: How to model a Fused circuit breaker in SKM Posted: Tue Aug 13, 2024 11:24 pm |
|
| Sparks Level |
|
Joined: Fri Jul 08, 2016 10:01 am
Posts: 383
Location: Indiana
|

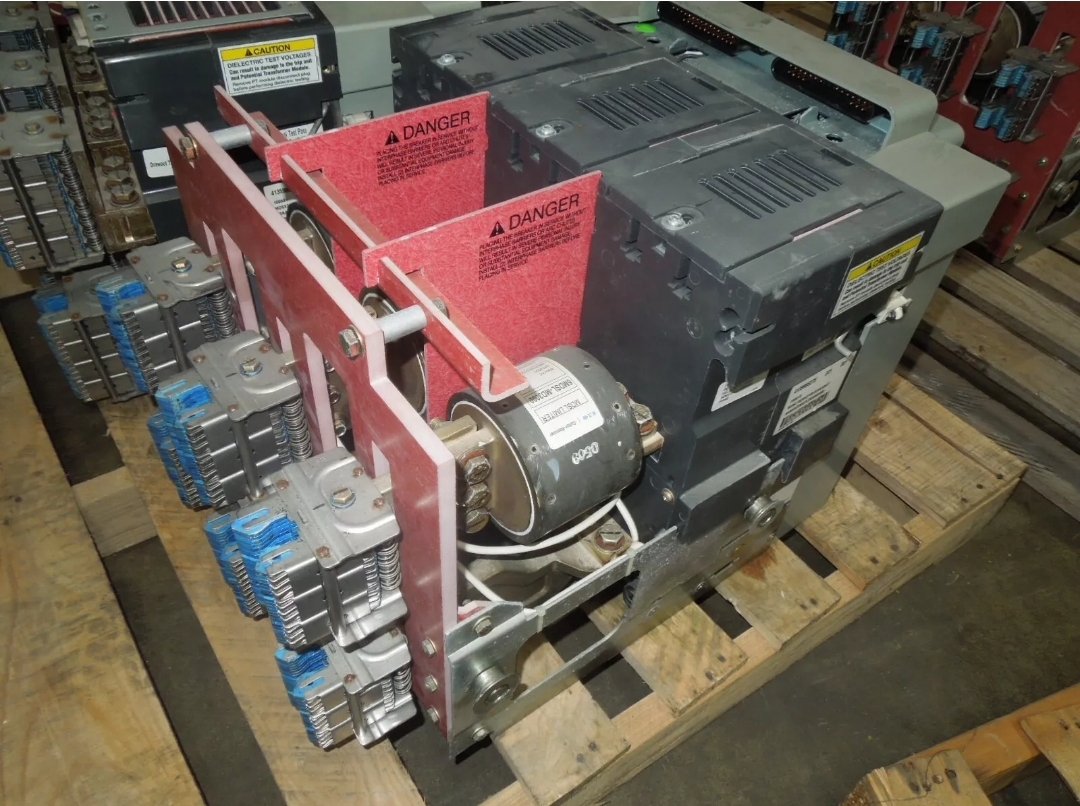

Looks like you probably are correct fuse then breaker if I'm seeing this pic correctly. Attachment:
Screenshot_20240814-022259_eBay.jpg [ 600.05 KiB | Viewed 2461 times ]
_________________
SKM jockey for hire
PE in 17 states
|
|
| Top |
|
|
|
bbaumer
|
Post subject: Re: How to model a Fused circuit breaker in SKM Posted: Wed Aug 14, 2024 1:32 pm |
|
| Sparks Level |
|
Joined: Fri Jul 08, 2016 10:01 am
Posts: 383
Location: Indiana
|

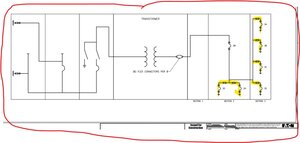

Bus then limiter then breaker according to some old shops I had. You were correct: Attachment:
MDSL Limiter Shops 1.jpg [ 86.43 KiB | Viewed 2456 times ]
_________________
SKM jockey for hire
PE in 17 states
|
|
| Top |
|
|

|
