 Post subject: Pad mounted transformer with secondary breaker
PostPosted: Wed Mar 27, 2019 4:25 am
Sparks Level
User avatar

Joined: Fri Jul 08, 2016 10:01 am
Posts: 227
Location: Indiana
The secondary bushings are all in line, horizontal for the phases as opposed to staggered or offset, and much closer spaced than in a pad mount without a breaker.

What would you call this configuration? HCB?

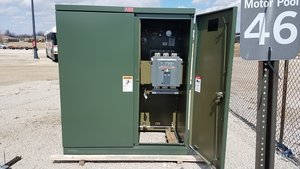

Attachment:
1000 kva with breaker.jpg
1000 kva with breaker.jpg [ 1.74 MiB | Viewed 1318 times ]

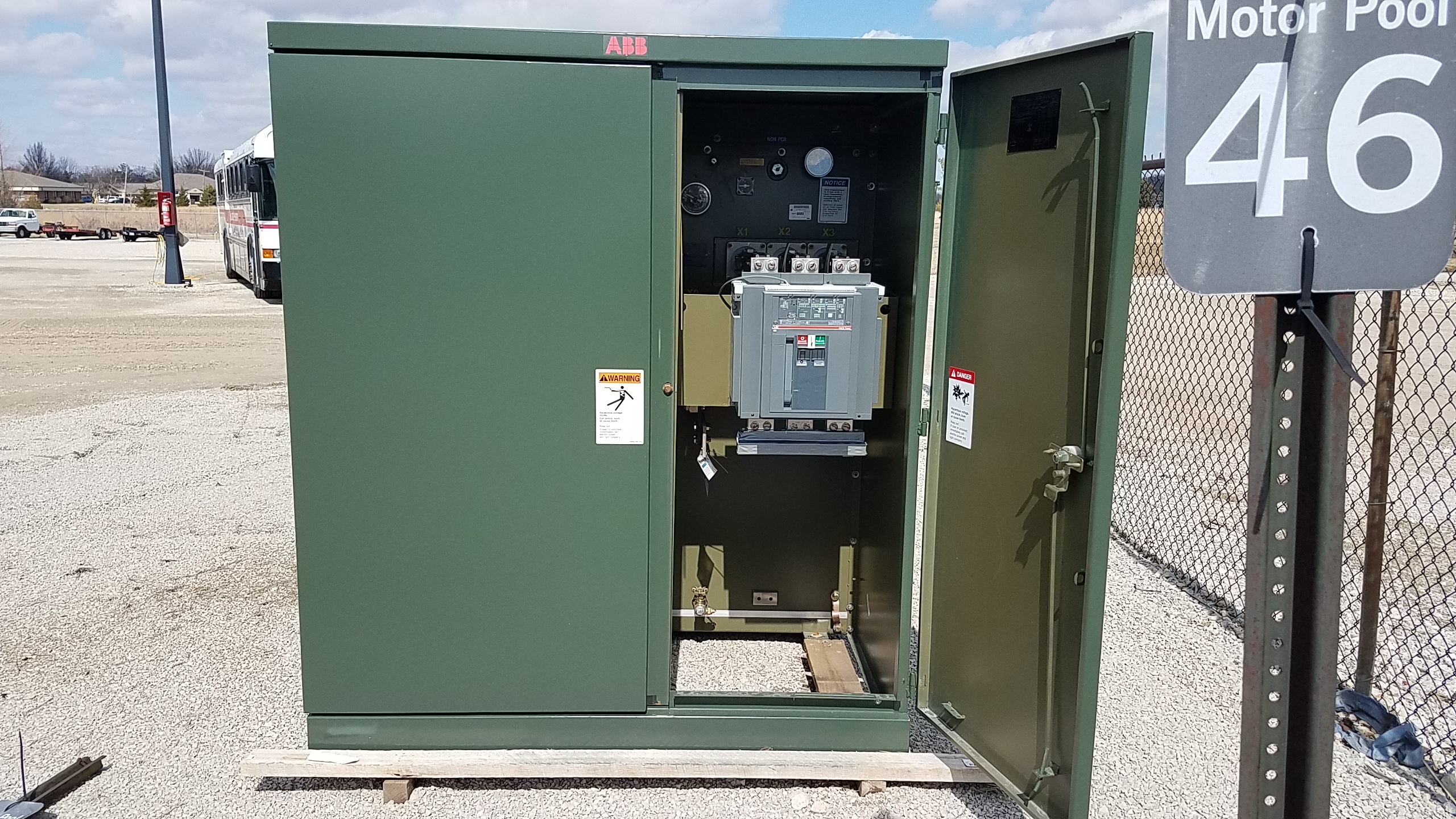

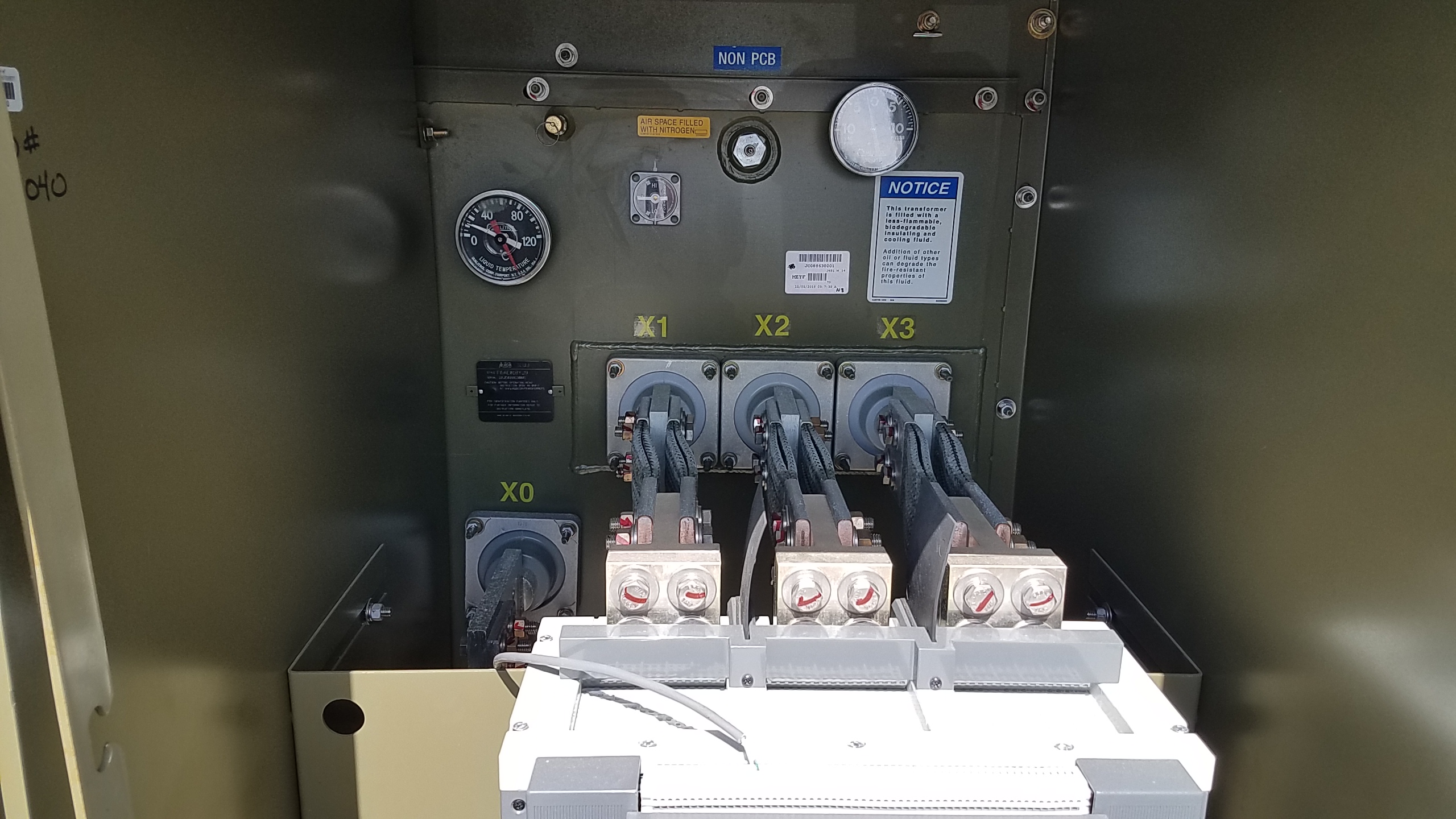

Attachment:
1000 kva with breaker bus.jpg
1000 kva with breaker bus.jpg [ 1.03 MiB | Viewed 1318 times ]

_________________
SKM jockey for hire


Top
 Profile Send private message
Reply with quote
 Post subject: Re: Pad mounted transformer with secondary breaker
PostPosted: Wed Mar 27, 2019 4:58 am
Sparks Level
User avatar

Joined: Fri Jul 08, 2016 10:01 am
Posts: 227
Location: Indiana
Just for grins, here's another one I just bought for my work. More standard configuration with the breaker cable fed.

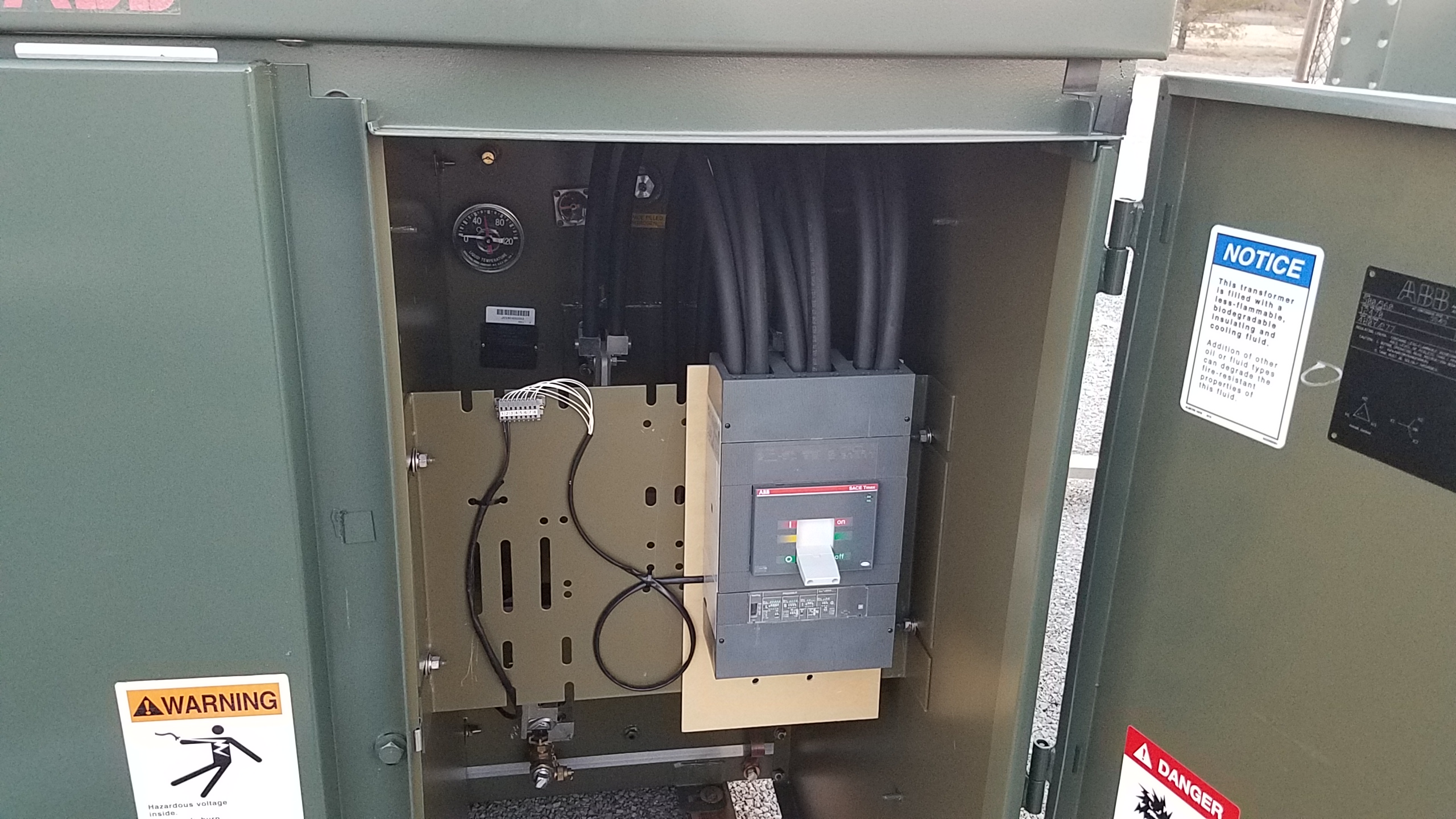

Attachment:
500 kva with breaker 1.jpg
500 kva with breaker 1.jpg [ 1.18 MiB | Viewed 1315 times ]

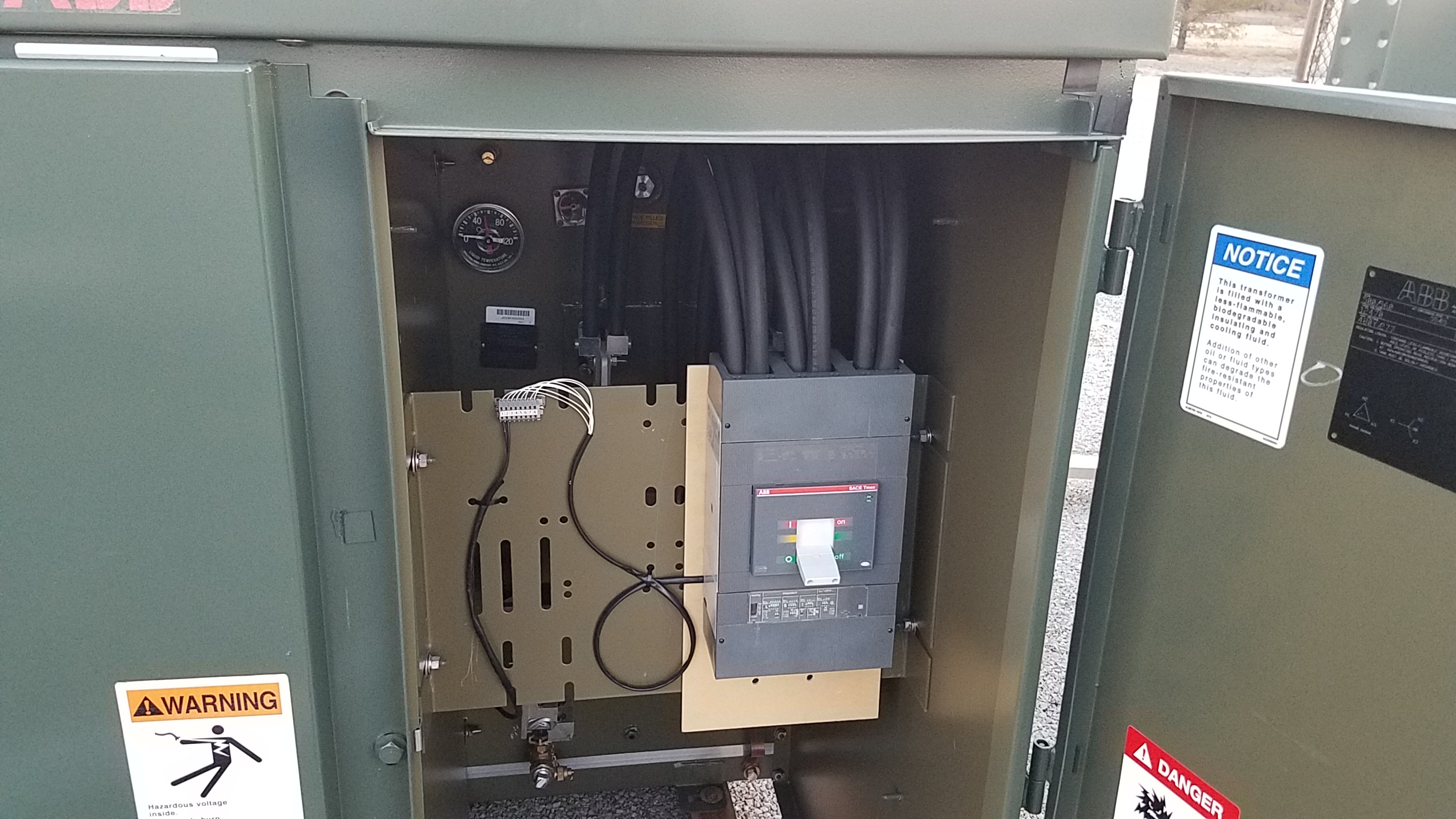

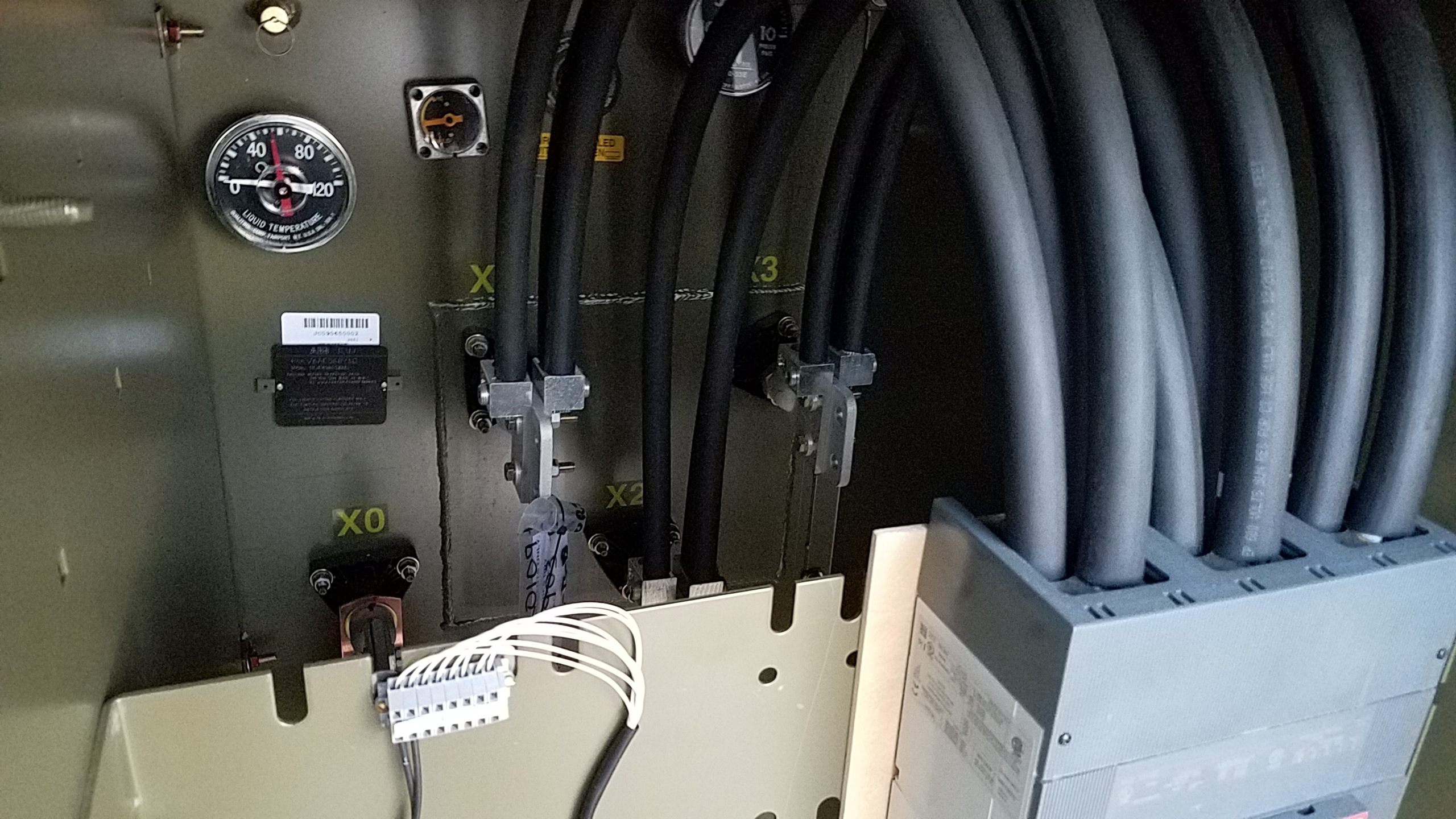

Attachment:
500 kva with breaker 2.jpg
500 kva with breaker 2.jpg [ 1.28 MiB | Viewed 1315 times ]

_________________
SKM jockey for hire


Top
 Profile Send private message
Reply with quote
 Post subject: Re: Pad mounted transformer with secondary breaker
PostPosted: Mon Apr 01, 2019 7:13 am
Sparks Level

Joined: Sat Apr 04, 2009 9:50 pm
Posts: 104
Location: San Antonio, TX
In my opinion, the first configuration is Hcb. The second is VCBB.


Top
 Profile Send private message
Reply with quote
 Post subject: Re: Pad mounted transformer with secondary breaker
PostPosted: Mon Apr 01, 2019 11:06 am

Joined: Mon Nov 24, 2008 6:42 pm
Posts: 5
Location: Nashville, TN
I agree. First one is HCB, second is VCBB.


Top
 Profile Send private message
Reply with quote
 Post subject: Re: Pad mounted transformer with secondary breaker
PostPosted: Fri Apr 05, 2019 11:32 am
Sparks Level
User avatar

Joined: Tue Oct 26, 2010 5:00 pm
Posts: 186
Location: Maple Valley, WA.
I too agree. HCB for the first photo and VCBB for the second.

_________________
Robert Fuhr, P.E.; P.Eng.
PowerStudies


Top
 Profile Send private message
Reply with quote
