 Post subject: Modeling Question
PostPosted: Tue Aug 30, 2022 11:32 am

Joined: Tue Jun 14, 2022 11:35 am
Posts: 5

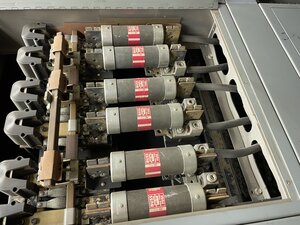

I have a old FPE switchboard that has two fuses per phase. In the attached image you have 300-amp fuses with 300 MCM cable. I am assuming for proper results in SKM this would need to be modeled as a 600-amp fuse with parallel 300 MCM. Any thoughts or suggestions on modeling this?
